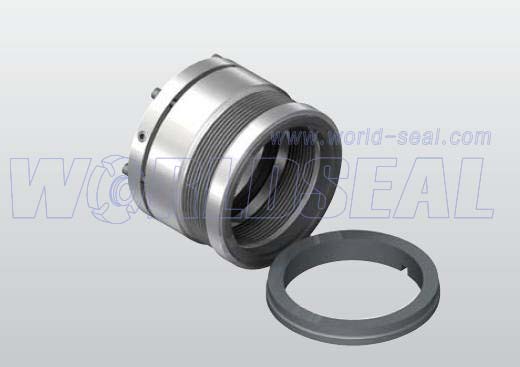

Product Name:MB-J06



Product type:For big compressors and industrial pump metal bellows seal



Keywords:For big compressors and industrial pump metal bellows seal, metal bellows seal



Product Description:MB-J06 metal bellows seal,for big compressors and industrial pump.trisun mechanical seal manufacture,Trisun Mechanical Seal Manufacture Co., Ltd. is the advanced designer & manufacturer of mechanical seal, the range involves in: industrial pump mechanical seal, mixer and agitator seal, cartridge seal, metal bellows seal, auto cooling pump seal and auto air-condition compressor lip seal. Trisun products can replace the mechanical seals produced by John Crane and Burgmann and be widely used in petroleum, chemistry, refinery, paper making, pharmacy, power and auto industry.



OPERATING LIMITS

Temperature:

-75℃~+200℃

Pressure:

≤2Mpa/6.9Mpa(doublewaveslice)

Speed:

≤25m/s









Rotary Ring:

SiC/Carbon/TC

Stationary Ring:

SiC/Carbon

Secondary Seal:

Flexiblecarbon

Metal Bellows:

SUS316L/AM350/Inconel718/Titanium/Hastelloy-C/Alloy-20

Other Parts :

SUS304/SUS316/Titanium/Hastelloy-C

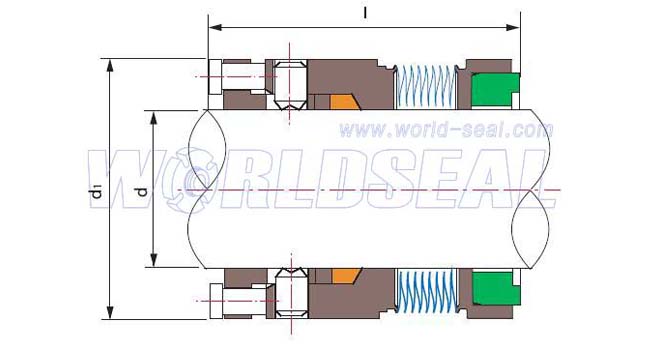

shaft

d

d1

l



shaft

d

d1

l

1

1

1.625

1.531



25

25

41.28

38.89

1.125

1.125

1.75

1.562



28

28

44.45

39.67

1.25

1.25

1.875

1.593



32

32

47.63

40.46

1.375

1.375

2

1.593



35

35

50.8

40.46

1.5

1.5

2.125

1.593



38

38

53.98

40.46

1.625

1.625

2.25

1.593



40

40

57.15

40.46

1.75

1.75

2.375

1.625



45

45

60.33

41.28

1.875

1.875

2.5

1.625



48

48

63.5

41.28

2

2

2.625

1.656



50

50

66.68

42.06

2.125

2.125

2.75

1.656



55

55

69.85

42.06

2.25

2.25

2.875

1.719



60

60

76.2

43.66

2.375

2.375

3

1.719



65

65

82.55

44.45

2.5

2.5

3.25

1.75



70

70

88.9

45.24

2.625

2.625

3.375

1.781



75

75

96.82

47.63

2.75

2.75

3.5

1.781



80

80

101.6

47.63

2.875

2.875

3.687

1.875



85

85

107.95

47.63

3

3

3.812

1.875



90

90

111.13

47.63

3.125

3.125

4

1.875



95

95

117.48

47.63

3.25

3.25

4.125

1.875



100

100

123.83

47.63

3.375

3.375

4.25

1.875











3.5

3.5

4.375

1.875











3.625

3.625

4.5

1.875











3.75

3.75

4.625

1.875











3.875

3.875

4.75

1.875











4

4

4.875

1.875
