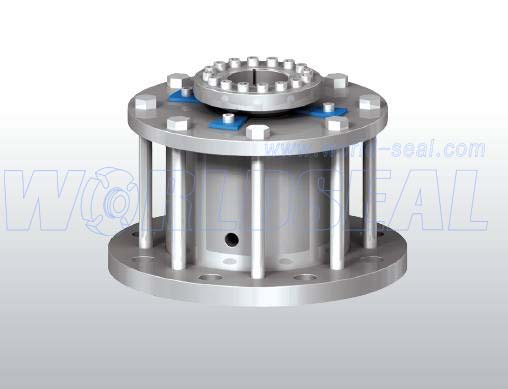

Product No.:MA- U01



Keywords:For food processing,medical industry mixer and agitator seal, mixer and agitator seal



Product Description:MA- U01 mixer and agitator seal, for food processing,medical industry.trisun mechanical seal manufacture,Trisun Mechanical Seal Manufacture Co., Ltd. is the advanced designer & manufacturer of mechanical seal, the range involves in: industrial pump mechanical seal, mixer and agitator seal, cartridge seal, metal bellows seal, auto cooling pump seal and auto air-condition compressor lip seal. Trisun products can replace the mechanical seals produced by John Crane and Burgmann and be widely used in petroleum, chemistry, refinery, paper making, pharmacy, power and auto industry.



OPERATING LIMITS

Temperature:

-30℃~+205℃

Pressure:

≤2.1Mpa(shaftdiameter≤75mm)

≤1.3Mpa(shaftdiameter>75mm)

Speed:

≤25m/s









Rotary Ring:

SiC/Carbon/TC

Stationary Ring:

SiC/Ceramic

Secondary Seal:

VITON/PTFECoatedVITON/PTFE

Other Parts :

SUS304/SUS316/Titanium/Hastelloy-C

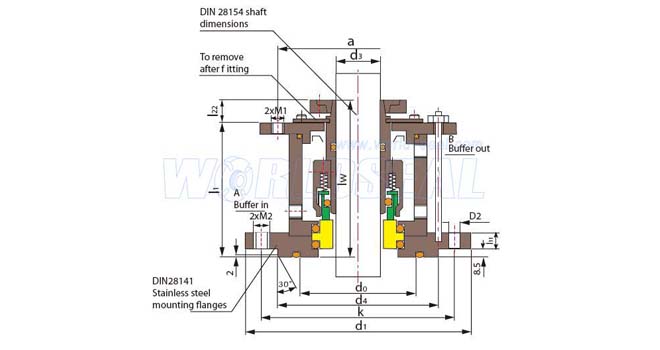

d3

d7

d1

D2xn

d4

d0

K

l1

l2

lw

l11

l22

a

M1

M2

A-B

40

38

175

18x4

110

90

145

110.5

159.5

143

15

28

122

M12

M16

3/8G

50

48

240

18x8

176

135

210

114.5

174.5

148

17

28

157

M12

M16

3/8G

60

58

240

18x8

176

135

210

119

181.5

158

17

28

168

M12

M16

3/8G

80

78

275

22x8

204

155

240

133

217.5

168

20

34

203

M16

M20

1/2G

100

98

305

22x8

234

190

270

137.5

218.5

178

20

34

228

M16

M20

1/2G

125

120

330

22x8

260

215

295

138.5

233.5

203

20

40

268

M20

M20

1/2G

140

135

395

22x12

313

250

350

152.5

250.5

208

20

40

285

M20

M20

1/2G

160

150

395

22x12

313

265

350

161

253

213

25

40

297

M20

M20

1/2G

180

170

445

22x12

364

310

400

166

263.5

233

25

45

332

M24

M20

1/2G

200

190

445

22x12

364

310

400

171

271

243

25

45

352

M24

M20

1/2G

220

210

505

22x16

422

340

460

-

-

263

25

-

-

M24

M20

1/2G
