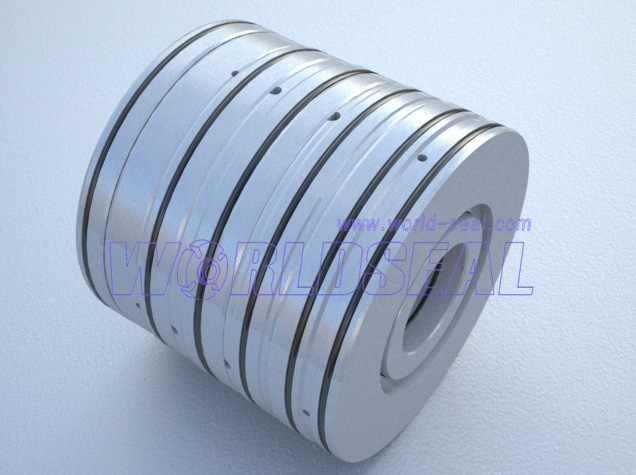

Product Name:DGS-J07



Keywordsnon-contacting dry gas seal, mechanical seal

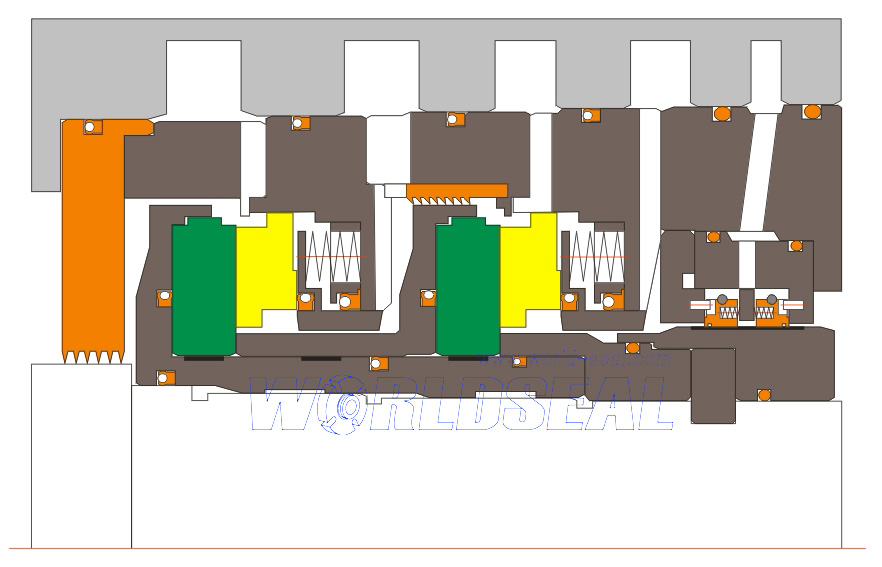

Product DescriptionDuring dynamic operation,the mating ring/seat and primaryring/face maintain a sealing gap of approximately 0.0002 in./5 microns, thereby eliminating wear. These seals eliminate seal oil contamination and reduce aintenance costs and downtime. Single,double opposed,and tandem cartridge seals are capable of handling a wide variety of gas sealing applications in the gas collection/transmission,refining,chemical and petrochemical processing industries. Shrouded mating ring prevents secondary damage in the event of a mating ring fracture. Low-level leakage can be vented to as safe area, used as fuel to drive equipment or returned to process via a low-pressure ejector



OPERATING LIMITS

Temperature:

-140~315

Pressure:

≤45MPa

Speed:

200m/s



Higher operations conditions also achievable, please contact with world seal engineer:  info@world-seal.com









Rotary Ring:

SiC/TC

Stationary Ring:

Carbon

Secondary Seal:

VITON/Kalrez

Other Parts :

Hastelloy-C/Duplex/SUS316
