Product Name:DGS-J01
Keywords:mechanical seal, dry gas seal, dry seal, gas seal, mechanical seals for pumps, cartridge seal, pump seals, mechanical shaft seals, dry gas seal centrifugal compressor, dry gas seal compressor, mechanical seals centrifugal pumps.

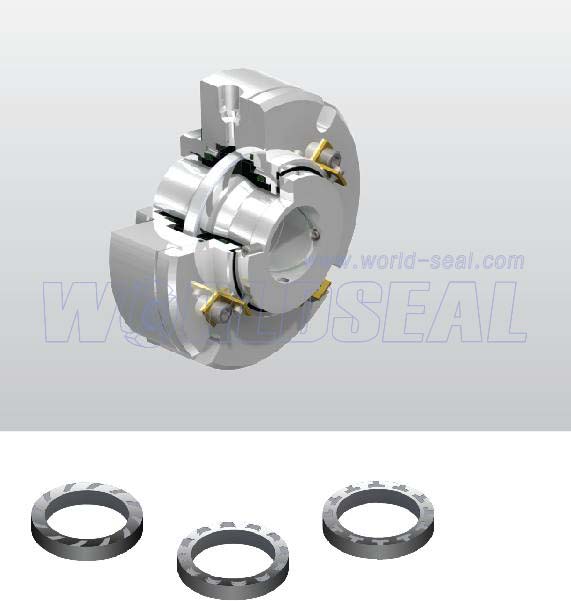

Product Description:DGS-J01 belong to externally mounted, gas lubricated, non-contacting, double cartridge seal. Gas lubricated non-contact dual seal offer the extended seal life and reduced power consumption. The using of pressurized inert gas source ensure the zero emissions of positively sealing hazardous to the atmosphere.
|
OPERATING LIMITS |
|
|
Temperature: |
-20℃~+260℃ |
|
Pressure: |
≤1.6MPa |
|
Speed: |
≤25m/s |
Higher operations conditions also achievable, please contact with world seal engineer: info@world-seal.com
|
|
|
|
●Rotary Ring: |
SiC/TC |
|
●Stationary Ring: |
Carbon |
|
●Secondary Seal: |
VITON/Kalrez |
|
●Other Parts : |
Hastelloy-C/Duplex/SUS316 |
|

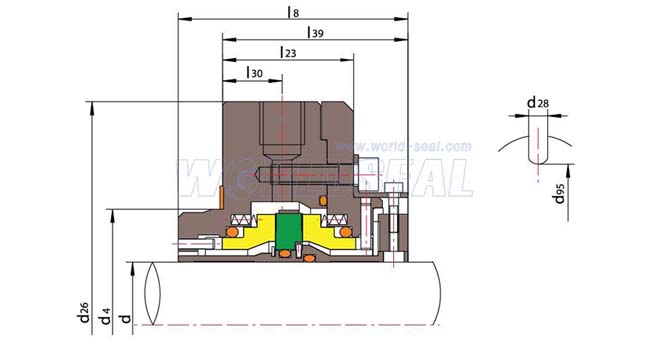

d |
d4min |
d26 |
d28 |
d95 |
l8 |
l23 |
l30 |
l39 |
|
25 |
41 |
114 |
12 |
64.7 |
67.8 |
37.5 |
15.5 |
54.5 |
|
28 |
44 |
117 |
12 |
67.7 |
67.8 |
37.5 |
15.5 |
54.5 |
|
30 |
46 |
119 |
12 |
69.7 |
67.8 |
37.5 |
15.5 |
54.5 |
|
33 |
49 |
122 |
14 |
72.7 |
67.8 |
37.5 |
15.5 |
54.5 |
|
35 |
51 |
124 |
14 |
74.7 |
67.8 |
37.5 |
15.5 |
54.5 |
|
38 |
58 |
135 |
14 |
79.7 |
69.4 |
39.8 |
17.7 |
56.5 |
|
40 |
60 |
137 |
14 |
81.7 |
69.4 |
39.8 |
17.7 |
56.5 |
|
43 |
63 |
140 |
14 |
84.7 |
69.4 |
39.8 |
17.7 |
56.5 |
|
45 |
65 |
142 |
14 |
86.7 |
69.4 |
39.8 |
17.7 |
56.5 |
|
50 |
70 |
147 |
18 |
91.7 |
69.4 |
41.8 |
17.7 |
56.5 |
|
53 |
73 |
150 |
18 |
94.7 |
69.4 |
41.8 |
17.7 |
56.5 |
|
55 |
75 |
152 |
18 |
96.7 |
69.4 |
41.8 |
17.7 |
56.5 |
|
60 |
85 |
157 |
18 |
101.7 |
69.4 |
41.8 |
17.7 |
56.5 |
|
65 |
90 |
180 |
18 |
106.7 |
71.4 |
43.8 |
19.7 |
58.5 |
|
80 |
109 |
195 |
18 |
121.7 |
71.4 |
43.8 |
19.7 |
58.5 |
|
100 |
129 |
215 |
22 |
141.7 |
71.4 |
43.8 |
19.7 |
58.5 |
|
d |
d4min |
d26 |
d28 |
d95 |
l8 |
l23 |
l30 |
l39 |
|
0.875 |
1.500 |
3.750 |
0.437 |
2.295 |
2.574 |
1.398 |
0.513 |
2.028 |
|
1.000 |
1.625 |
3.750 |
0.437 |
2.421 |
2.574 |
1.398 |
0.513 |
2.028 |
|
1.125 |
1.750 |
4.250 |
0.437 |
2.469 |
2.574 |
1.398 |
0.513 |
2.028 |
|
1.250 |
2.000 |
4.250 |
0.437 |
2.669 |
2.574 |
1.398 |
0.513 |
2.028 |
|
1.375* |
2.125 |
4.250 |
0.437 |
2.795 |
2.574 |
1.398 |
0.513 |
2.028 |
|
1.375** |
2.000 |
4.250 |
0.437 |
2.795 |
2.574 |
1.398 |
0.513 |
2.028 |
|
1.500 |
2.250 |
4.875 |
0.562 |
3.142 |
2.732 |
1.567 |
0.697 |
2.224 |
|
1.625 |
2.375 |
4.500 |
0.437 |
2.680 |
2.732 |
1.567 |
0.697 |
2.224 |
|
1.750 |
2.500 |
5.500 |
0.562 |
3.390 |
2.732 |
1.567 |
0.697 |
2.224 |
|
1.875 |
2.625 |
5.500 |
0.562 |
3.335 |
2.732 |
1.567 |
0.697 |
2.224 |
|
2.000 |
2.750 |
4.750 |
0.562 |
3.461 |
2.732 |
1.567 |
0.697 |
2.224 |
|
2.125 |
2.875 |
6.000 |
0.687 |
3.768 |
2.732 |
1.567 |
0.697 |
2.224 |
|
2.250 |
3.125 |
6.500 |
0.687 |
3.890 |
2.732 |
1.567 |
0.697 |
2.224 |
|
2.375 |
3.250 |
6.250 |
0.687 |
4.016 |
2.732 |
1.567 |
0.697 |
2.224 |
|
2.500 |
3.375 |
6.500 |
0.687 |
4.142 |
2.812 |
1.724 |
0.776 |
2.303 |
|
2.625 |
3.625 |
6.500 |
0.687 |
4.268 |
2.812 |
1.724 |
0.776 |
2.303 |
|
2.750 |
3.750 |
7.000 |
0.687 |
4.370 |
2.812 |
1.724 |
0.776 |
2.303 |
|
3.000 |
4.000 |
7.000 |
0.687 |
4.642 |
2.812 |
1.724 |
0.776 |
2.303 |
|
3.500 |
4.500 |
7.250 |
0.812 |
5.142 |
2.812 |
1.724 |
0.776 |
2.303 |
|
4.000 |
5.000 |
7.250 |
0.812 |
5.642 |
2.812 |
1.724 |
0.776 |
2.303 |
